SnetAppMessage Class Reference

#include <SnetAppMessage.h>

Inheritance diagram for SnetAppMessage:

Collaboration diagram for SnetAppMessage:

Public Member Functions
	SnetAppMessage (uint8_t a_SrcServiceId=0, uint8_t a_DstServiceId=0, uint8_t a_Token=0, uint16_t a_SrcSSA=0xFFFE, uint16_t a_DstSSA=0xFFFE, bool a_OnAirARQ=true)
void	SetSrcServiceId (uint8_t a_SrcServiceId=0)
uint8_t	GetSrcServiceId () const
void	SetDstServiceId (uint8_t a_DstServiceId=0)
uint8_t	GetDstServiceId () const
void	SetToken (uint8_t a_Token=0)
uint16_t	GetToken () const
std::vector< unsigned char >	Serialize () const
size_t	Deserialize (const std::vector< unsigned char > &a_Buffer)
std::string	Dissect () const
Public Member Functions inherited from SnetPacket
	SnetPacket (uint16_t a_SrcSSA=0xFFFE, uint16_t a_DstSSA=0xFFFE, bool a_OnAirARQ=true)
virtual	~SnetPacket ()
void	SetSrcSSA (uint16_t a_SrcSSA=0xFFFE)
uint16_t	GetSrcSSA () const
void	SetDstSSA (uint16_t a_DstSSA=0xFFFE)
uint16_t	GetDstSSA () const
void	SetOnAirARQ (bool a_OnAirARQ=true)
bool	GetOnAirARQ () const

Protected Member Functions
size_t	GetSize () const

Detailed Description

Definition at line 42 of file SnetAppMessage.h.

Constructor & Destructor Documentation

SnetAppMessage()

SnetAppMessage::SnetAppMessage ( uint8_t  a_SrcServiceId = 0, uint8_t  a_DstServiceId = 0, uint8_t  a_Token = 0, uint16_t  a_SrcSSA = 0xFFFE, uint16_t  a_DstSSA = 0xFFFE, bool  a_OnAirARQ = true  )

inline

Definition at line 44 of file SnetAppMessage.h.

Member Function Documentation

Deserialize()

size_t SnetAppMessage::Deserialize ( const std::vector< unsigned char > &  a_Buffer )

inlinevirtual

Reimplemented from SnetPacket.

Reimplemented in SnetServiceMessage.

Definition at line 66 of file SnetAppMessage.h.

Here is the call graph for this function:

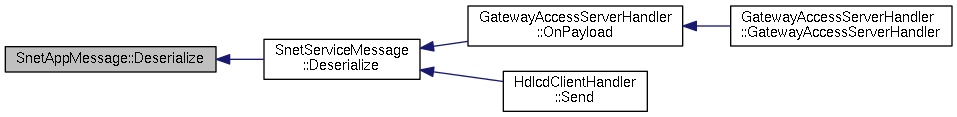

Here is the caller graph for this function:

Dissect()

std::string SnetAppMessage::Dissect ( ) const

inlinevirtual

Reimplemented from SnetPacket.

Reimplemented in SnetServiceMessage.

Definition at line 82 of file SnetAppMessage.h.

Here is the call graph for this function:

Here is the caller graph for this function:

GetDstServiceId()

uint8_t SnetAppMessage::GetDstServiceId ( ) const

inline

Definition at line 50 of file SnetAppMessage.h.

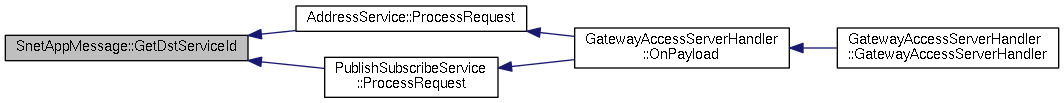

Here is the caller graph for this function:

GetSize()

size_t SnetAppMessage::GetSize ( ) const

inlineprotectedvirtual

Reimplemented from SnetPacket.

Reimplemented in SnetServiceMessage.

Definition at line 93 of file SnetAppMessage.h.

Here is the call graph for this function:

Here is the caller graph for this function:

GetSrcServiceId()

uint8_t SnetAppMessage::GetSrcServiceId ( ) const

inline

Definition at line 48 of file SnetAppMessage.h.

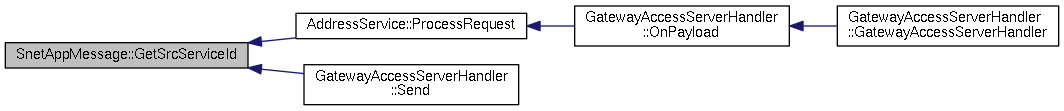

Here is the caller graph for this function:

GetToken()

uint16_t SnetAppMessage::GetToken ( ) const

inline

Definition at line 52 of file SnetAppMessage.h.

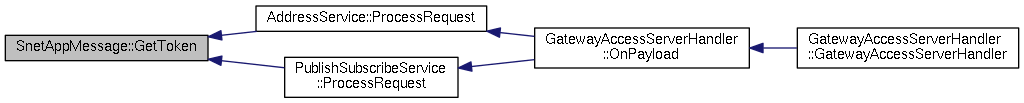

Here is the caller graph for this function:

Serialize()

std::vector<unsigned char> SnetAppMessage::Serialize ( ) const

inlinevirtual

Reimplemented from SnetPacket.

Reimplemented in SnetServiceMessage.

Definition at line 55 of file SnetAppMessage.h.

Here is the call graph for this function:

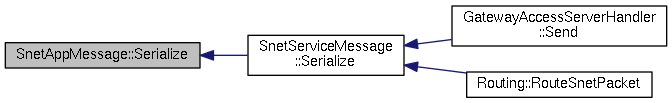

Here is the caller graph for this function:

SetDstServiceId()

void SnetAppMessage::SetDstServiceId ( uint8_t  a_DstServiceId = 0 )

inline

Definition at line 49 of file SnetAppMessage.h.

SetSrcServiceId()

void SnetAppMessage::SetSrcServiceId ( uint8_t  a_SrcServiceId = 0 )

inline

Definition at line 47 of file SnetAppMessage.h.

SetToken()

void SnetAppMessage::SetToken ( uint8_t  a_Token = 0 )

inline

Definition at line 51 of file SnetAppMessage.h.

---

The documentation for this class was generated from the following file:

• libs/snet-devel/src/SnetAppMessage.h
